Introduction

Turntable Dumper Trailers use advanced turntable steering mechanism, which can achieve all-wheel steering, making the trailer highly maneuverable and flexible in narrow spaces or complex road conditions. This design not only improves the passability of the trailer, but also reduces the difficulty of operation, allowing the driver to easily cope with various complex road conditions.

Features

Flexible operating system
Our products are equipped with advanced operating systems, which usually include wireless remote control and manual control. The wireless remote control system controls the hydraulic system through electrical signals to ensure the stability and safety of the unloading process.

Multifunctional application
Turntable Dumper Trailers have good versatility and are suitable for transporting various types of materials, such as sand, soil and agricultural products. Its turntable design enables efficient unloading in different types of working environments.

Pressure protection device
The hydraulic system of our products is usually equipped with a pressure protection device to prevent accidental pressure overload during unloading. This device can monitor the working pressure of the hydraulic system in real time. When the pressure exceeds the safety threshold, the system will automatically reduce pressure or stop working to avoid hydraulic pipeline rupture or equipment damage.

Specification

Axle No.	Axle Location	Tire No.	Length	Rating Capacity
1	Rear	4	4000-7500mm	15Tons
2	1+1	8	7500-12500mm	40Tons
3	1+2	12	12500-15000mm	60Tons
4	2+2	16	15000-18000mm	80Tons
Suspension		America type mechanical Suspension
	Wheel	11:00 R20
	Turntable	Diameter is 1100mm
	Traction hook	DN50
	Traction bar	Length is 1.4m
	Dimensions(LxWxH)	7500-18000×2500×1500mm
	Steel Spring	10/10 pieces per axles
Tire:
	The material of Main beam	The height of the beam is420mm,upper plate is 12mm140,down plate is 12140mm,middle plate is 6mm(strictly).made of Q345
	Platform plate	3mm Diamond Plate
Brake:		WABCO VALVE
	Brake	Kemi Brand of China
	Brake Chamber	TWO double and two single chamber( TKL brand )
	ABS system	with
Electrical:
	Voltage	24V
	Receptacle	7 ways(7 wire harness)
Light color:		(LED light)
	Side marker lamp	Orange
	Rear lamp	Red
	Turn signal lamp	Orange
Miscellaneous:
	Painting	Can be choose freely
	Marking	According to the requirement of the buyer
	Side Guard	According to the requirement of the buyer
	Tools box	One pieces or According to the buyer(1m length)

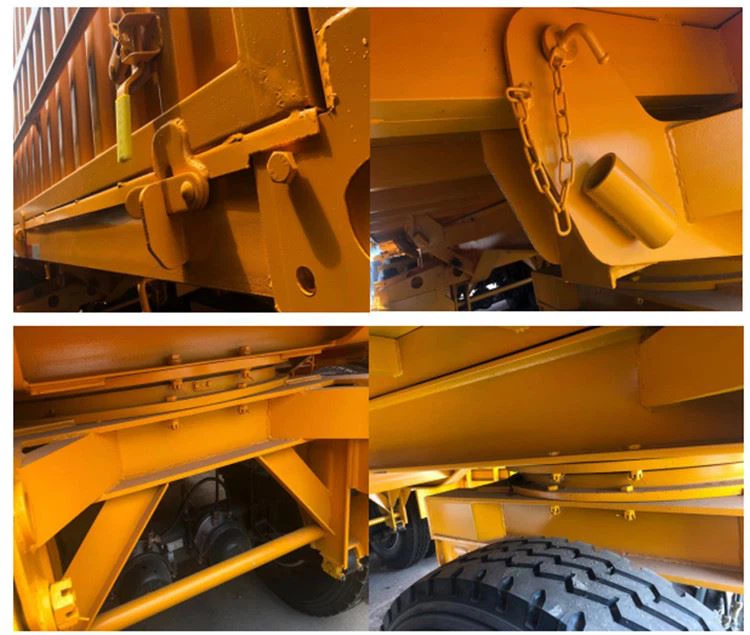

$K%0_LO[`5{GCFH$C[1UEWKC$

6]]OH`U_5W8[D9U[I7)U@N7 R_Q}Z@(7E84WBGD%PNE5W6E

FAQ

Q: 1. What is a turntable dumper trailer, and how does it work?

A: A turntable dumper trailer is a specialized type of trailer designed for efficient unloading of bulk materials. It features a rotating turntable mechanism that allows the trailer bed to pivot while dumping its load. This design enables operators to position the trailer precisely, facilitating the unloading process in confined or uneven spaces. Typically used in construction and mining, these trailers are ideal for handling various loose materials, such as gravel, sand, and aggregate.

Q: 2. What are the advantages of using turntable dumper trailers?

A: Turntable dumper trailers offer several advantages over traditional dump trailers. One key benefit is their ability to unload materials in tight spaces or on uneven terrain without the risk of tipping over. The rotating feature allows for greater precision during unloading, reducing the chances of spillage. Additionally, the efficiency of turntable trailers can speed up the unloading process, thereby increasing productivity and reducing labor costs in construction and industrial applications.

Q: 3. What types of materials are commonly transported using turntable dumper trailers?

A: Turntable dumper trailers are versatile and can transport a variety of bulk materials. Common loads include aggregates such as sand, gravel, and crushed stone, which are essential in construction projects. They can also carry agricultural products, including fertilizers and grains, as well as waste materials for disposal. Their design makes them suitable for any loose material that requires precise and efficient unloading in various environments.

Q: 4. How do turntable dumper trailers enhance safety during operations?

A: Safety is a critical aspect of turntable dumper trailers. Their design minimizes the risk of tipping during unloading, which is a common hazard with traditional dump trailers. Many models are equipped with hydraulic systems that include safety features such as pressure relief valves, preventing overloading. Additionally, operators can control the unloading position precisely, reducing the likelihood of spillage or accidents, especially in busy work environments where safety is paramount.

Q: 5. What maintenance practices are essential for turntable dumper trailers?

A: Regular maintenance is crucial for ensuring the safe and efficient operation of turntable dumper trailers. Operators should conduct routine inspections of the hydraulic systems, checking for leaks and ensuring all components are functioning correctly. It's also important to inspect the turntable mechanism for wear and lubrication needs. Keeping the trailer clean, especially after transporting bulk materials, helps prevent corrosion and extends its lifespan. Adhering to manufacturer guidelines for maintenance schedules is essential for optimal performance.
