Self loading container trailer have several advanced core technologies and a number of patents,itcan transfer containers to other trailers, trucks, or onto the ground. Its characters includingbiglifting capacity, large working range, wide applicationrange, good versatility and strong guarantee ability, meet the demands of lifting containeranywhere.It iswidely used for shipping, port, railway, storage and custom etc.Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and approbations.
Product Description
|
Self loading container trailer |
|
|
Outer side dimension (mm) |
12500mm*2500mm*4100mm |
|
Gross Weight |
About 13 tons |
|
Loading Capacity (Ton) |
≤ 37 T |
|
Chassis |
|
|
Dimension (mm) |
12500mm*2500mm*1550mm |
|
Axle |
3pcs 13T FUWA brand Axles |
|
Tire |
12.00R22.5 Triangle Brand 12 pcs |
|
Rim |
9.00-22.5 China Brand 12 pcs |
|
Suspension |
All mechanical suspension |
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer |
|
King pin |
JOST brand 3.5inch bolts type or Welding type |
|
Support leg |
China brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm Upper plate is 14mm Middle plate is 8mm Down plate is 16mm Material is Q345B Steel |
|
Brake chamber |
WABCO RE 6 relay valve; 2* T30/30+T30 Spring brake chamber |
|
Twist Locks |
12 pcs |
|
Valve |
WABCO valve |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
One piece, 1.5m×0.5m×0.5m |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Loading arm |
|
|
Tare weight |
7000 kg |
|
Max.lifting capacity |
37000 kg |
|
Max.stabiliser outreach |
3200 mm |
|
Max.working range |
4000 mm |
|
Overall height |
2490 mm |
|
Overall width |
2500 mm |
|
Overall lengh |
1020 mm |
|
Max.pressure of hydraulic system |
28 MPa |
Products advantages

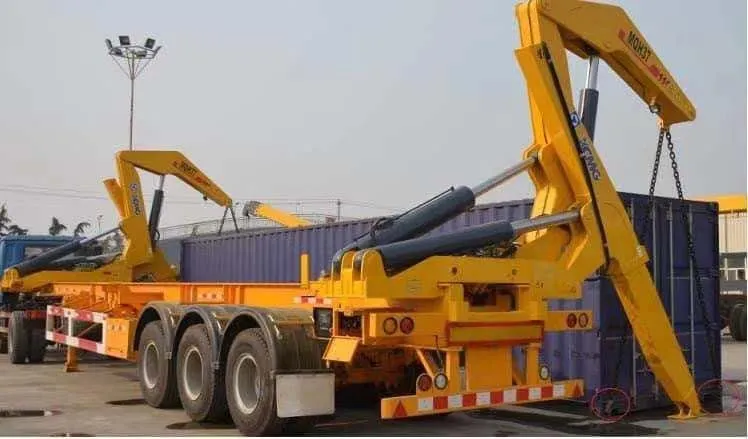

CONTAINER SIDE LOADER TRAILER :
1.Drawing Dimension of Loading arm
![C]Q}7QB~E[AXO6{_)`~}YCB](/Content/uploads/2021835087/20210914102056658f8df76b154a2e81a53f0d1c61b26f.jpg)
China made famous brand crane
1. Adopting imported electromagnetic valve
2. Two speed operation
3. Double pumps and dual circuit hydraulic system
4. Adopting advanced safety protection system.

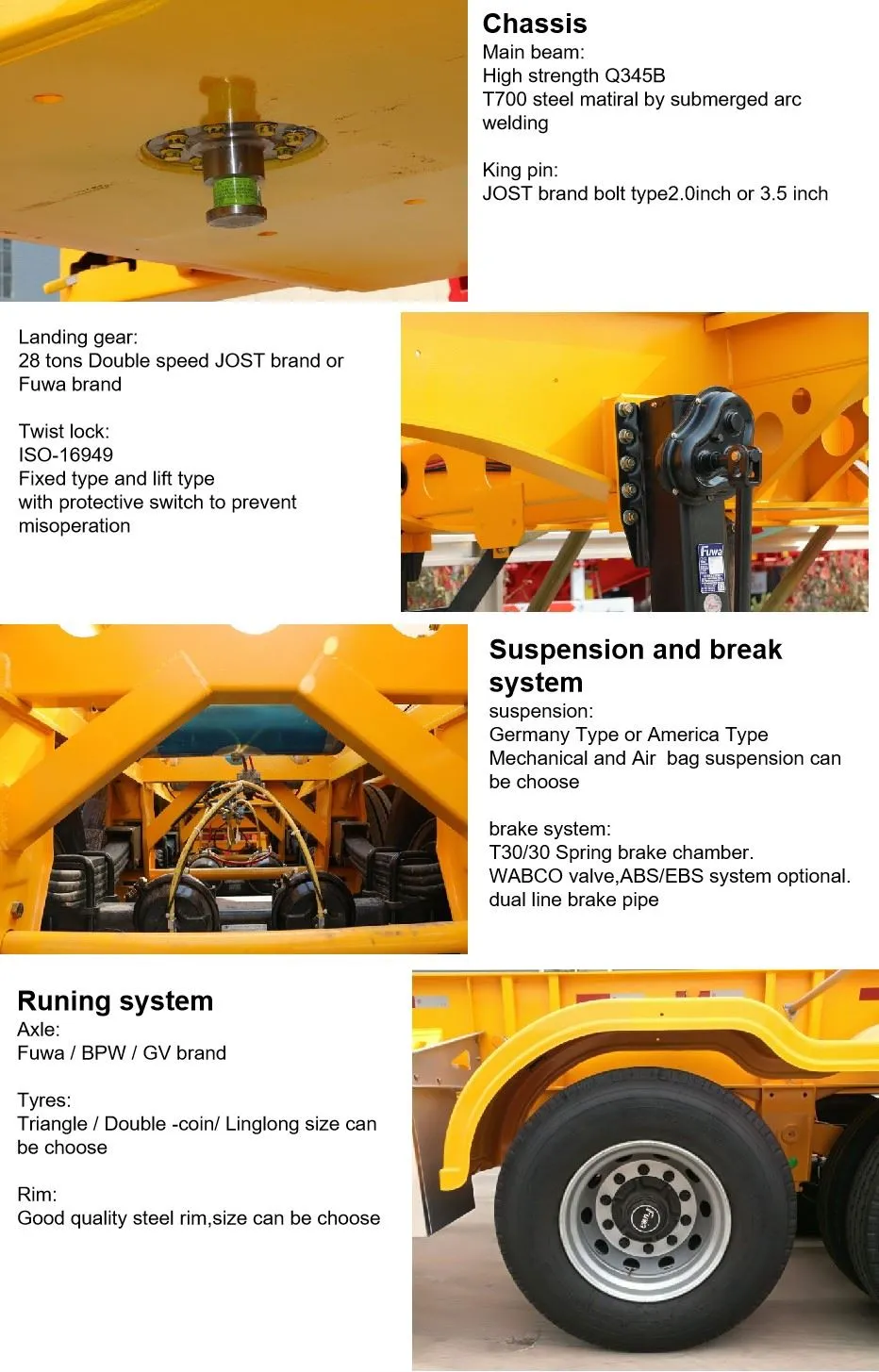

2.Chassis trailer
Recommend Products
Quality
- All spare parts are from famous brand or your Customized.
- All spare parts are testing before assembly.
- High quality automatic and manual welding.
- Quality control supervisor do inspection before delivery.
- Acceptance for third party inspection.
Please click "ANDAJT AUTO Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
