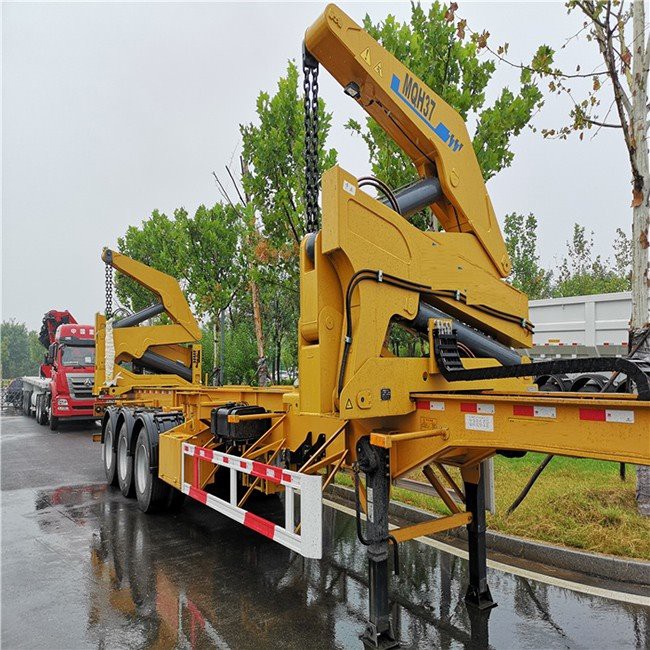

3 Axle 20ft Side Self Loading Container Semi Trailer
Flatbed semi trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
Products Description
|
Max lifting capacity |
kg |
37000 |
|
Max stabilizer outreach |
mm |
3200 |
|
Max working range |
mm |
4000 |
|
Overall height |
mm |
2490 |
|
Over width |
mm |
2500 |
|
Over length |
mm |
1020 |
|
Max pressure of hydraulic system |
Mpa |
28 |
|
Tare weight |
kg |
7000 |
|
Motor manufacturer |
Kubota |
|
|
Engine Model |
V2403-M-DI-E3B-CSL-1 |
|
|
Total displacement |
L |
2.434 |
|
Brake Horse Power |
kW/rpm |
36.5/2600 |
|
Max Torque/Speed |
N•m/rpm |
158.6N•m/1600 |
|
Min Idling Speed |
rpm |
1050~1150 |
|
Max Idling Speed |
rpm |
2820 |
|
Dry Weight |
kg |
185 |
|
Power Voltage |
V |
12 |
|
Emission Regulation |
EU Stage3 |
|
|
Type |
/ |
Frame |
|
Outline dimension |
mm |
14100*2480*(≤1510) |
|
Maximum gross mass |
kg |
52000 |
|
Curb mass |
kg |
7200 |
|
Payload mass |
kg |
44800 |
|
Quantity of wheel |
/ |
3 |
|
Spread of axles |
mm |
8000+1350+1350 |
|
Tare weight |
kg |
7000 |
|
Axle load |
kg |
- / 24000 |
|
Maximum Kingpin Mass |
kg |
16000 |
|
ABS |
YES |
|
|
Front/Rear overhang |
mm |
-/2370 |
Recommend Products
FAQ
Q1: Can I get some samples?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q2: Do you receive customized order?
A: Certainly. Our company has rich production experience and we can customize all kinds of semi-trailers at a reasonable price
Q3: What's the lead time？
A: The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, the time can only be negotiated according to your order quantity at that time.
Q4: What's your warranty terms?
A: Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality..we provide technical support for our products.besides,we also provide you spare parts as long as you need .
Q5: What's your payment terms?
A: TT 30% as Deposit, Balance Before shipment by TT.
Please click "ANDAJT AUTO Flatbed Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
