Introduction

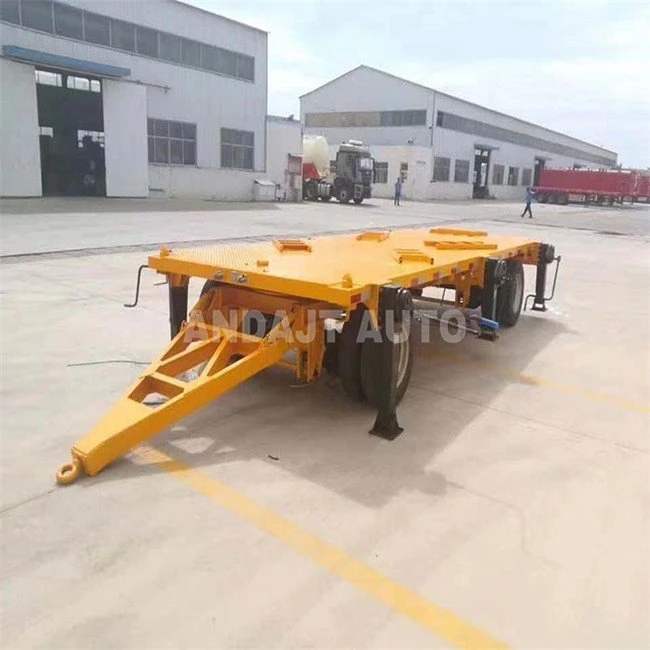

The essence of the Turntable Flatbed Trailer design lies in its turntable steering mechanism and flatbed structure. The turntable steering mechanism enables the trailer to achieve 360-degree rotation, greatly improving the vehicle's passability and flexibility in narrow spaces or complex road conditions. At the same time, the turntable structure is designed with precise bearings and transmission devices to ensure stability and durability during the steering process.

Features

Strong carrying capacity
The carrying capacity of our products is usually between 40 tons and 80 tons, depending on the model and configuration. Made of high-strength steel, the tensile strength can reach ≥600 MPa, ensuring stability under heavy load conditions. This high carrying capacity allows the trailer to transport more goods at one time, reducing the frequency of transportation, thereby improving overall efficiency.

Versatility
The design of Turntable Flatbed Trailer enables it to transport a variety of types of materials, including heavy machinery, construction materials and bulk cargo. The width of the carriage is usually 2.5 meters to 3 meters, and the length can reach 13 meters, with a wide range of transportation and strong adaptability.

Stable support system
The chassis design of our trailers is optimized with a low center of gravity design to ensure good stability during driving and unloading. Secondly, the body is equipped with anti-skid measures to reduce the risk of material sliding during unloading and ensure safety. Finally, the turntable design ensures a stable center of gravity and reduces the possibility of overturning when turning or driving.

20ft draw bar trailer Customerrize & OEM available

Specification

Dimension (Optional)	Axle No.	Rated Load (kg)	Tire No.	Tire Size
20ft	2	40000	8	825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
40ft 45ft 48ft 53ft	3	60000	12
40ft 45ft 48ft 53ft	4	75000	16
Wheel Base(mm)	1310
leaf-spring Pcs	10
Axle	10/13/14/16/18 T
Suspension	Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system with automatic braking system/chambers
Brake Air Chamber	Double Model
Kingpin	2' or 3.5' Interchangeable
Landing gear	28T loading capacity with 80T static lifting capacity.
Platform	4-6 mm diamond steel plate
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Main beam Size	Upper plate		14mm
	Lower plate		16mm
	Mid Web		8 mm
	Height		500-520mm
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
Pin Height	According to the height of the tractor saddle.
Painting	Three coats painting; Any color will be available
Other Specifications	The frame can be flat plate style and skeleton style. Twist lock settings installed 12pics, 8 pics,and 4pcs to satisfy the containers with different sizes for convince.
Application	For 2x20ft or 1x40ft containers/bulk cargo transport
Sidewall Height	300mm 600mm 800mm 1200mm 2000mm by needs

FAQ

Q: 1. What is a turntable flatbed trailer, and what are its primary uses?

A: A turntable flatbed trailer is a versatile transport vehicle designed with a flat, open platform and a pivoting turntable mechanism that allows it to articulate during transport. This design enhances maneuverability, making it suitable for transporting large and heavy loads such as construction equipment, machinery, and oversized cargo. Its flatbed structure provides easy access for loading and unloading, making it ideal for various industries, including construction, logistics, and agriculture.

Q: 2. What are the advantages of using a turntable flatbed trailer compared to traditional trailers?

A: Turntable flatbed trailers offer several key advantages over traditional trailers. The articulated design allows for better handling of tight turns and limited spaces, making them more maneuverable in urban or construction environments. The flatbed design provides a stable and open loading area, accommodating various cargo types. Additionally, the ability to pivot enhances the distribution of weight, improving stability and safety during transport, which is crucial for heavy loads.

Q: 3. What types of loads can be transported using turntable flatbed trailers?

A: Turntable flatbed trailers are highly versatile and can transport a wide array of loads. Commonly transported items include heavy machinery, construction equipment, large industrial components, and agricultural products. They are also suitable for moving bulk materials, prefabricated structures, and vehicles. The open platform design allows for the flexibility to secure different types of cargo, making these trailers invaluable in sectors such as construction, manufacturing, and logistics.

Q: 4. How do turntable flatbed trailers enhance safety during transportation?

A: Safety is a fundamental aspect of turntable flatbed trailers. The articulated design allows for better weight distribution and stability, which is especially important when transporting heavy loads. Many models come equipped with advanced braking systems and safety features like reflective markings and secure tie-down points. Additionally, the low-profile design helps maintain a lower center of gravity, reducing the risk of tipping during transport, which is critical in ensuring safe operations.

Q: 5. What maintenance is required to ensure the optimal performance of turntable flatbed trailers?

A: Regular maintenance is essential for keeping turntable flatbed trailers in optimal condition. Operators should perform routine inspections of the structural integrity, focusing on the frame, axles, and wheels for any signs of wear or damage. It's also crucial to check the hydraulic systems for leaks and ensure proper functionality. Lubricating moving parts and cleaning the flatbed area to prevent corrosion will extend the trailer's lifespan and enhance its performance. Following manufacturer maintenance guidelines is critical for reliability.
