Products Description
Dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. It has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.

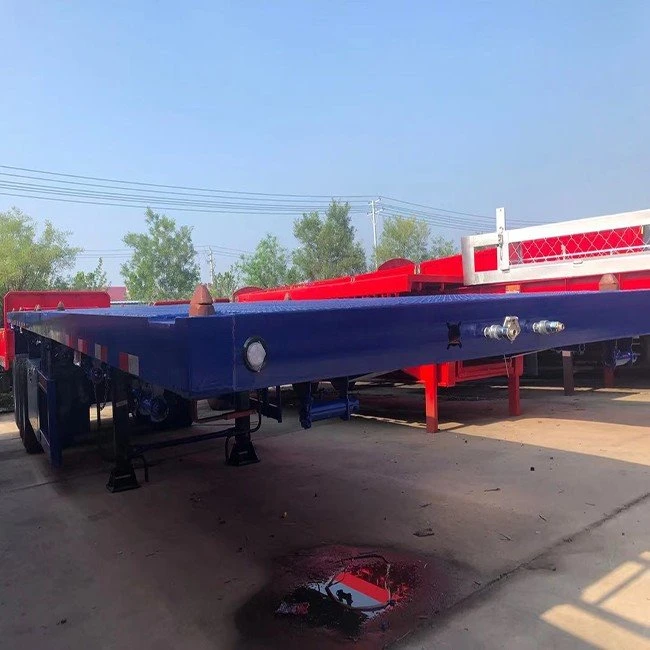

53ft Flatbed Container Trailer can carry 20ft and two 20ft containers.The flatbed trailer capacity ranges from 20 tons to 80 tons with 2 axle, 3 axles, and 4 axles. We use high quality tensile steel to reduce beam fracture probability.The main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, our flatbed trailer has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.
|
Trailer Model |
Tri-Axle 50 Tons 20ft 40ft 48ft 50ft 53 foot 13600mm |
|
Specifications |
|
|
Overall Dimension (Lx W x H)(mm) |
13600*2500*1550(Ordinary flatbed trailer ) |
|
Tare Weight(KG) |
7350 |
|
Loading Weight( KG) |
50000 |
|
Wheel Base |
6800mm+1305mm+1305mm |
|
Gooseneck |
Length:3.5m height: 1.6m Platfrom: height: 1.2m |
|
Semi Trailer Chassis |
|
|
Platform plate |
3mm Diamond plate |
|
The material of Main beam |
The height of the beam is 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. |
|
Axle Brand |
13Ton Axle FuWa brand |
|
Axle Number |
Three |
|
Suspension system |
Common Mechanical Suspension |
|
Leaf Spring |
10/10/10 leaf spring suspension |
|
Landing Gear |
28ton |
|
Tire Type and quantity |
12R22.5 12units |
|
Container Twist Locker |
12pcs container lock |
|
Traction Pin |
50mm or 90mm |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Electrical & Paint |
|
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six big chamber |
|
Electrical system |
Voltage: 24v Receptacle: 7 ways (7 wire harness) |
|
Side Guard |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
One set 6-core standard Cable. |
|
|
Painting |
Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request |
|
Packing&Shipping |
|
|
Packing |
Unpacked, Polish with wax before shipping |
|
Pattern and Logo |
According to customer’s request |
|
Shipping Terms |
By Bulk Cargo/Ro-ro ship or in container |
Packing Shipping
Mode of transport: bulk cargo, ro-ro transport, container transport
We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.
Welcome to leave your inquiry! Thank you!
