Product Description

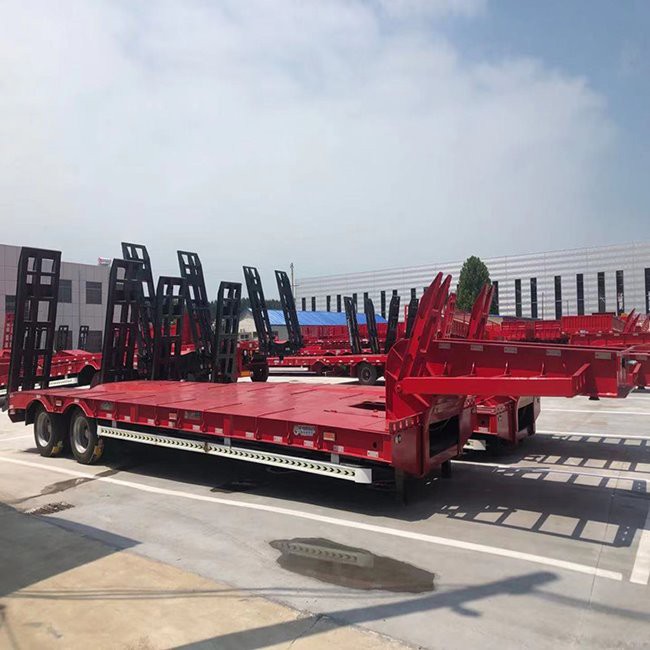

The multi-axle semi-trailer is mainly designed and manufactured for transporting large cargo. It can be used as a large-scale, ultra-large cargo that is difficult to disassemble as a power station, mining and metallurgical enterprise, chemical industry, construction and earthmoving construction department.

Trailer Model	2 lines 4 axles lowbed trailer

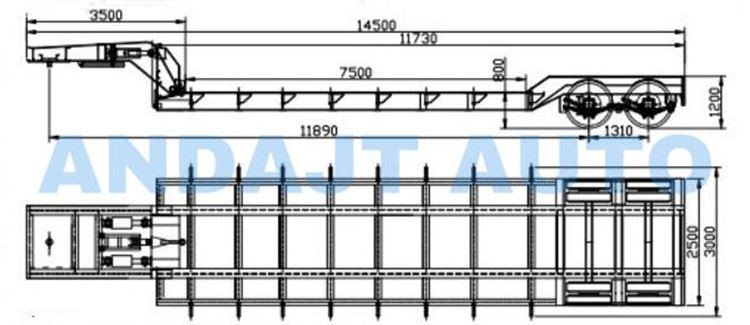

Dimension(Lx W x H)(mm)	14500 x 3000 x 1200 Platform length: 7.5m
Curb Weight(KG)	13200
Loading Weight( KG)	80000-100000
Applications	cranes and different industrial equipment transportation
Axle Brand	13TON Axle JULIN brand
Axle Number	4
Wheelbase(mm)	11890*1310
Suspension system	Mechanical suspension
Steel Spring	10/10/10/10 leaf spring suspension
Frame	The height of the beam is 500mm, upper plate is 22mm, down plate is 22mm, middle plate is 16mm.
Materials of chassis	chassis use steel Q550, beam use steel Q690, the other part use AH700/800.
Platform plate	5mm checkered plate
Tire Type and quantity	750-15 Bridgestone 16units
Traction Pin	90# bolt-in king pin
Spare Wheel Bracket	2 pieces
Tool Box	1 Unit standard
Landing Leg	two-speed, manual operating ,heavy duty 28T
Brake system	RE8 relay valve ;T30/30spring brake chamber;40L air tanks.
Ramp	Can add,depend on clients.
Electrical system	24V,7 Pole plug
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	with
Painting	Complete chassis sand blasting to clean rust , 1 coat of anticorrosive prime, 2coats of final paint
Packing	Polish with wax before shipping

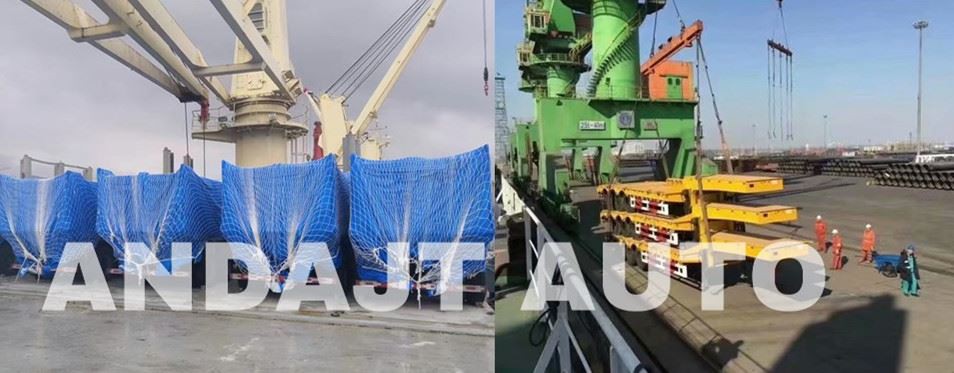

Delivery way	Transfer to China port, and carry by bulk ship, the freight cost depends on the volume.
