Product Description
ANDAJT AUTO adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. To make sure the servise life of the semi trailers, all the parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition. For our tipper trailers, we can design the U type / Square type / container flatbed dumper, the capacity range is from 30 ton to 100 ton.
The Characteristics of The Tipper Trailer
1. Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.
2. Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.
3. Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.

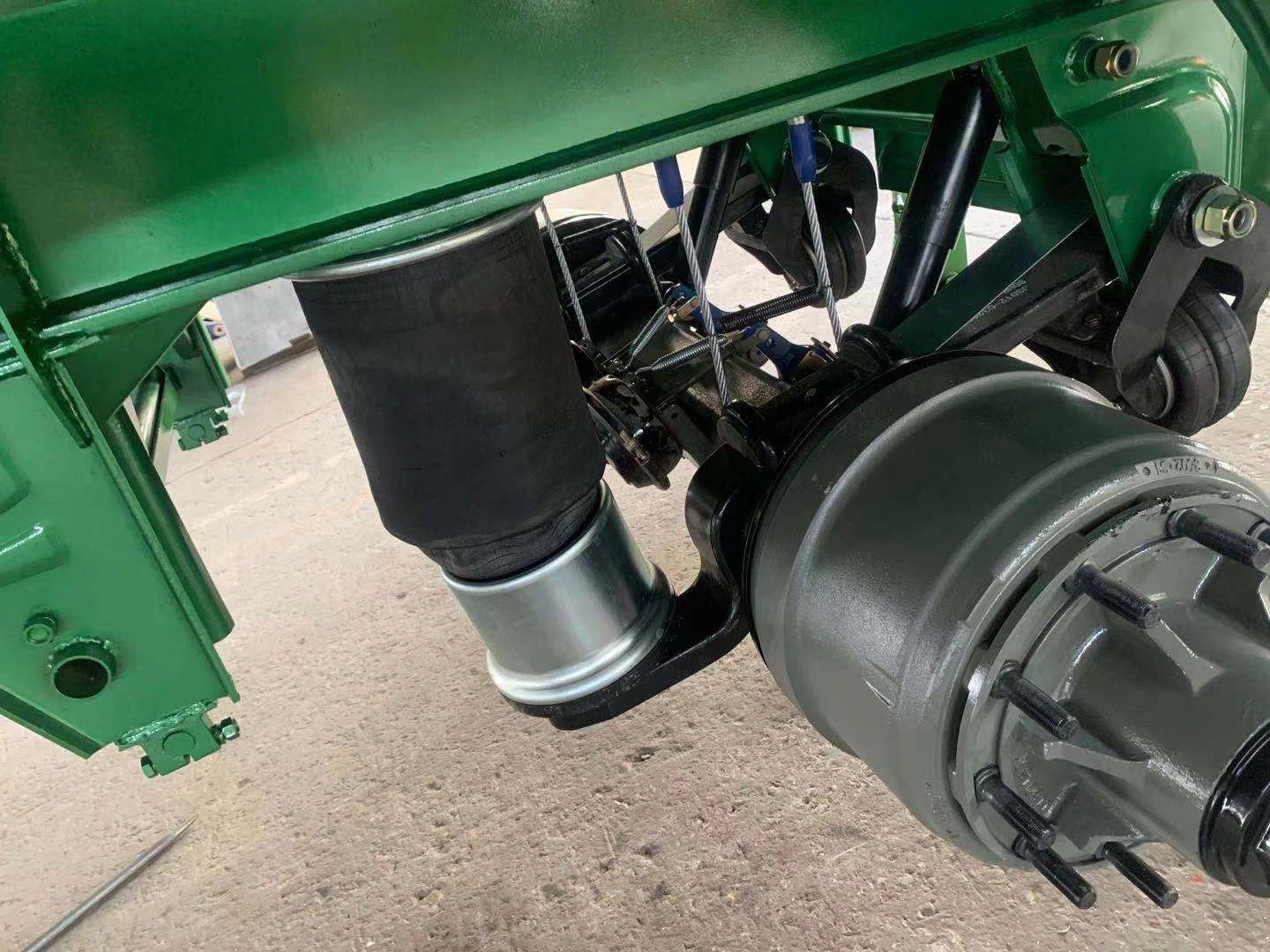

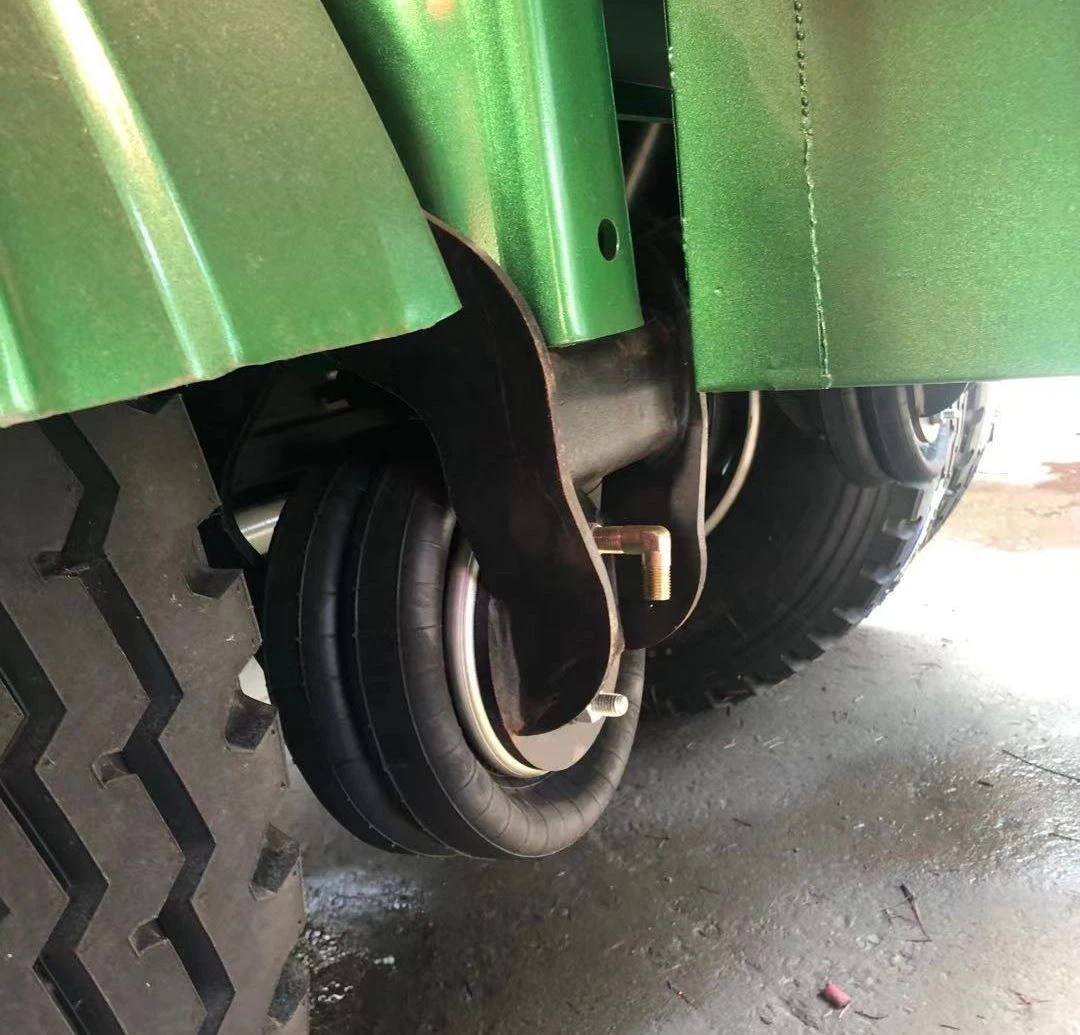

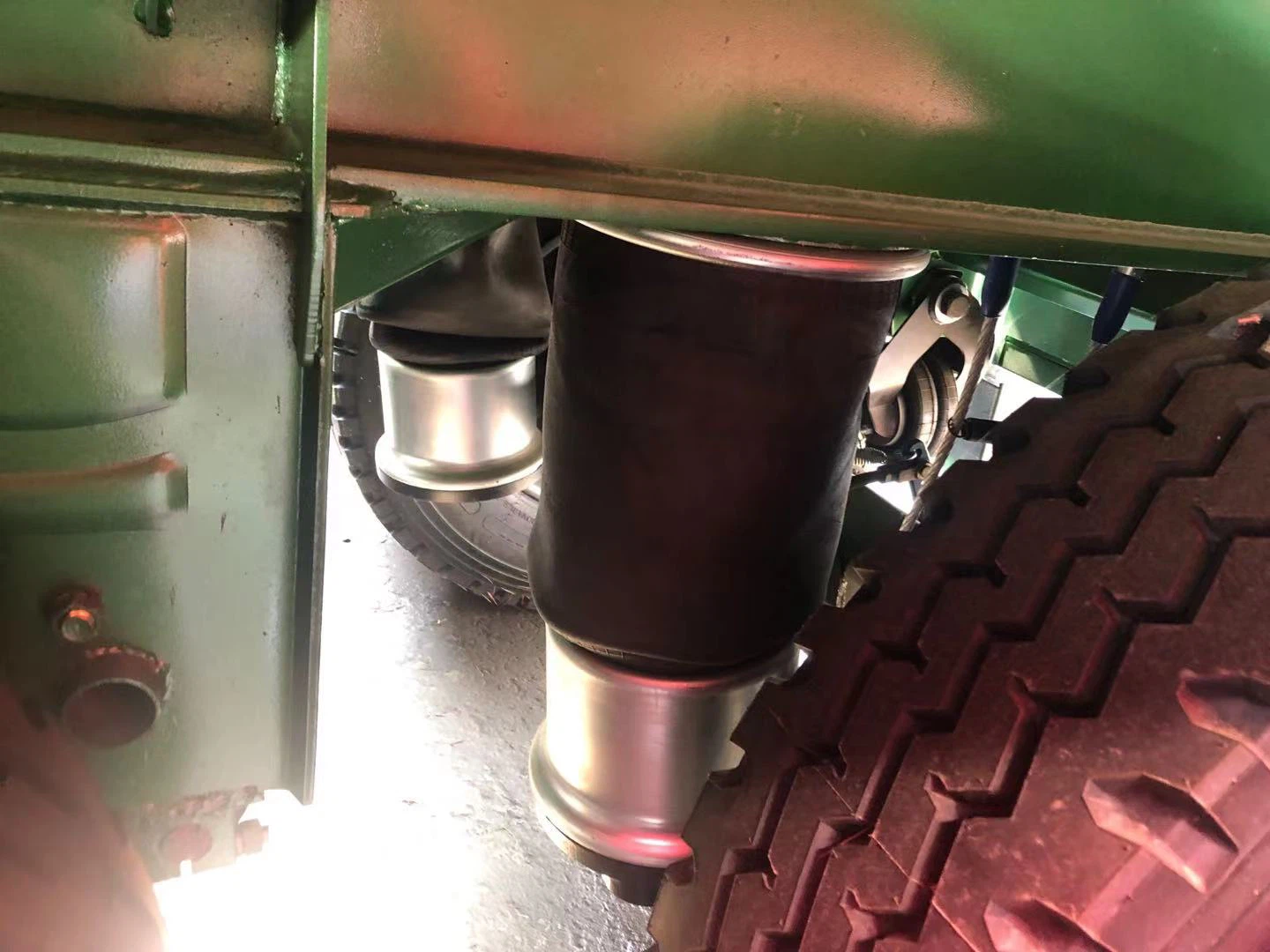

4. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
Detail specification | |
Model | 4 axle 50m3 dump trailer |
Function | Transport sand, stone, gravel |
Dimension | |
Overall Size (L×W×H)mm | 9800×2550×3860mm |
Inner Size (L×W×H)mm | 8500×2330×2000mm |
Wheel base | 6870+1310+1310+1310mm |
weight | |
Payload | 80,000kg |
Tare weight | Approx12,000kg |
G.V.W.R. | Approx 92,000kg |
Body details | |
Main beam | Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm. |
Body thickness | 6mm |
Bottom thickness | 8mm |
Hydraulic System | Full set of Hydraulic System |
Frame | |
Axle | 4×13Ton capacity, |
Suspension | Leaf spring suspension, 90mm×16mm×10pcs |
Tire | 12R22.5 16units Chengda Brand |
Kingpin | 50mm/90mm removable |
Landing gear | Yahua brand, 28ton, double speed, heavy duty |
Tool box | 1pcs |
Spare wheel carrier | 2pcs |
Electrical system | |
Voltage | 24Volt |
Receptacle | 7 way socket SAE standard,China |
Front marker lamp | white |
Side marker lamp | white&red |
Rear lamp | red |
Turn signal lamp | Amber |
Wiring | Electric cable protected by PVC conduit on main frame |
Brake system | |
Brake | Dual line pneumatic brake,SAE hose and connector,no ABS |
Brake air chamber | Six big chamber |
Painting | Shot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat.Total DFT not less than 100um |
Color | As customer requirement |
Competitive Advantage
1. Submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
3. ANDAJT dump tipper trailer are equipped with HYVA cylinder, which is more reliable and more safety.
4. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
We suppply tipper semi trailers with multiple customization options.
Nearly 14 years of experience in making trailers for every customer!
Our strong and experienced technical team can design according to your special requirements.
More than 1200 workshop workers guarantee the delivery of the trailer!
Welcome you to visit our company at any time, guide, discuss together, we will meet you at the airport!
