Product Description

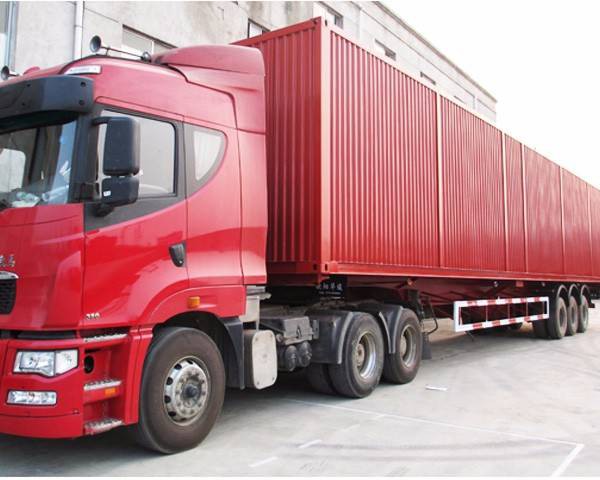

Box Semi Trailer
Primarily used in ship and intermodal logistics systems to support ports, routes, roads, transit stations, Bridges and tunnels. The semi-hanging container has reasonable structure, high strength and beautiful appearance. With stable quality and reliable performance
Box Semi Trailer is a widely used commercial vehicle, which has many advantages and functions, which is an important part of modern logistics transportation.First, the car of the van is designed with closed design, which can effectively protect the goods and reduce the wear and loss of the goods. In particular, the advantages of the wing semi-trailer are more obvious in the transport of fragile or high-grade goods.Second, the van is very safe. Its structural stability and low center of gravity can effectively improve the safety of transportation. At the same time, the van can also use advanced braking systems, electronic control systems and other technologies to ensure the safety of vehicles.In addition, the van is not only able to transport the goods, but also provides a certain advertising effect for the enterprise. For example, the logo or slogan of the enterprise on the body can effectively improve the brand awareness and influence of the enterprise.In logistics transportation, the role of the wing semi-trailer cannot be ignored. It can transport all kinds of goods, such as coal, building materials, food, home appliances, etc. It can transport goods in cities and can play an important role in long-distance transportation. At the same time, the flexible semi-trailer is also very flexible, which can be adapted to different scenarios.All in all, as an integral part of the modern logistics industry, the wing semi-trailer has many advantages and functions, which has become the right-hand man of the logistics transport of enterprises. It is believed that in the continuous technological progress and the gradual expansion of market demand, the future of the van will be brighter.
Product parameter
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size |
20ft | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
40ft 45ft 48ft 53ft | 3 | 60000 | 12 | |
40ft 45ft 48ft 53ft | 4 | 75000 | 16 | |
Manufacture | Shandong （ANDA）JITONG Special Vehicle Manufacturing Co., Ltd. | |||
Wheel Base (mm) | 1310 | |||
leaf-spring Pcs | 10 | |||
Axle | 13/16/18 T | |||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | |||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||
Brake System | Dual line braking system with automatic braking system/chambers | |||
Brake Air Chamber | Double Model | |||
Kingpin | 2' or 3.5' Interchangeable | |||
Landing gear | 28T loading capacity with 80T static lifting capacity. | |||
Platform | 4-6 mm diamond steel plate | |||
Brake System | Dual Lines Braking System With Automatic Air Chambers | |||
Brake Air Chamber | Four double and two single chamber | |||
Electrical System | 24V, 7core socket, lights according to European standards. | |||
Mainbeam Size | Upper plate | 14mm | ||
Lower plate | 16mm | |||
Mid Web | 8 mm | |||
Height | 500-520mm | |||
Tool Box | 1 box of standard tools | |||
Spare tire carrier | 2 sets | |||
Color and Logo | Depends on the buyer’s requirement. | |||
Pin Height | According to the height of the tractor saddle. | |||
Painting | Three coats painting; Any color will be available | |||
Application | For animal/livestock/coal/grain bulk cargo transport | |||
Box Height | 2M | |||
Can be professional for you to customize the car you need
First, performance efficacy
Box Semi Trailer, the safety factor of the van semi-trailer is very good, and there are few problems in the process of carrying, that is, in the transportation of goods, the safety of the goods can also be guaranteed. The bearing strength is also very good, can carry more than the average car carrying capacity. The structure design meets the requirements of transportation conditions, the use of long time, the use of the most advanced production technology.
Second, special mechanism design
The van semitrailer has a design mechanism rarely used by other semitrailers, is a beam type, and forms a whole through cross welding. This can ensure the safety of the van semi-trailer in the process of transportation and determine the length of its service life. Basically all van semi-trailers are designed in this way.
Three, closed design concept
The biggest difference of the Box Semi Trailer is that it uses a closed design, which can reduce the loss of goods during the transportation of goods. It can also reduce the wind resistance during high-speed transportation and reduce the energy consumption during the operation of the car.
PRODUCT DETAILS
1)welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2)surface should be clean and looks beautiful.
3)brake system should be adjust before the product leave the factory
4)lamp should be checked before leave the factory
5)all the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory
Packaging & Shipping
Main shipping way by Bulk Ship or RO-RO Ship:
FAQ
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for 14 years in China.
2.Whats the qualify assurance we provided and how do we control quality?
Established a procedure to check products at all stages of the manufacturing processraw materials,process materials,validated
3. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess longterm cooperation with ship agency which can provide you lowest shipping fee.
4. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Welcome to leave your inquiry! Thank you!
