1. Function:
This hydrogen tube trailer, can store and trasnport CNG, they are designed, manufactured, inspected and accepted according to ISO11120 Cylinder-design, structure and test of seamless and reusable steel tube with a capacity between 150L to 3000L.
2. Application:
1] For CNG transportation from mother station/ gas reserve to daughter station.
2] For CNG transportation to places where pipeline network hasn't been built.
3] For CNG transportation to places where can't reach existing distribution system etc.
4] For CNG storage at gas stations.
8 TUBES CNG TRAILER
Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.
Each tube has: 11582mm length, 559mm diameter. Quality Filling: 5400N/m3
6 TUBES CNG TRAILER
Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.
Each tube has: 12190mm length, 711mm diameter. Quality Filling: 6300N/m3
|
hydrogen tube trailer |
Cylinder |
||
|
Item |
Item |
||
|
Tare weight |
30740Kgs (include chassis) |
Working pressure |
25MPa |
|
Filling quality |
4410Kg |
Working temperature |
-50~65 d C |
|
Total weight |
35150Kgs (include chassis) |
Main material |
30CrMoLX |
|
Major risk category |
2.1 |
Cylinder QTY |
6 or 8 |
|
UN code |
1049 |
Total volume |
19.6M3 |
|
Filling medium |
CNG |
Pressure for water pressure test |
37.5MPa |
|
Gas tightness test pressure |
25Mpa |
Dimension(mm) |
N x11570 |
|
Pipeline water pressure test pressure |
37.5MPa |
Design temperature |
65 d C |
|
Filling amount |
6174Nm3 |
Medium property |
Explosive |
|
Overall dimension (mm) |
12450*2480*3460 (8 tubes) 13000*2480*3140 (6 tubes) |
Bursting discs |
Burst pressure 37.5MPa |
|
Transporting |
Highway combined transport |
Bursting disc device discharge aperture |
|
|
Design service life |
Fifteen years |
≥20 |
|
|
Chassis: |
|||
|
Axle |
3 Axles, 13 Tons FUWA brand |
||
|
Tire |
13 pcs, include one spare tire |
||
We design, manufacture, test and mark DOT transportable seamless pressure vessels (tubes) in accordance with the DOT standards.These vessels, used for transportation and hauling high-pressure chemicals and gases.These tubes are certified, along with our ton containers, not only in compliance with DOT codes, but also those of the International Organization for Standardization (ISO) standard 11120.

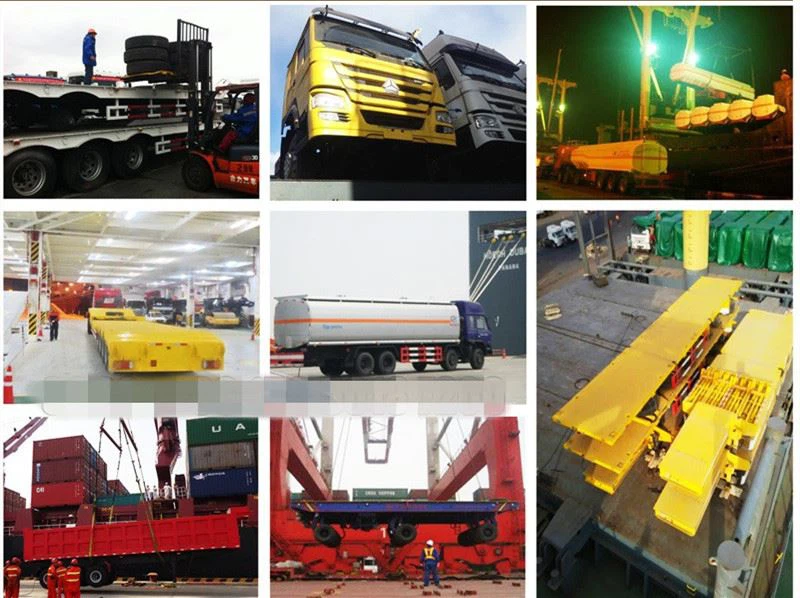

We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers and trucks will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Packaging Types:
Bulk Way | Container Way | Frame | RoRo
