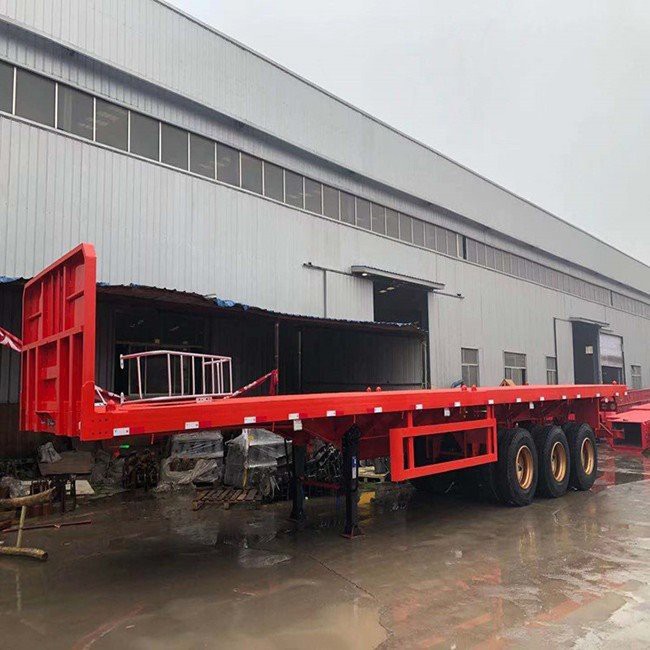

3 Axles high quality used heavy duty flatbed container semi trailer for sale
Flatbed trailer as known as flatbed container trailer. This trailer can carry loose cargo, Pipe, 20/30/40/45 feet Container. There are 40 ton – 100 ton loading capacity for your choose. We also support Customized design, it helps getting most suitable vehicles for you.
Specification
|
Tare Weight |
flatbed container trailer |
|
Dimension |
12500mm*2490mm*1550mm |
|
Capacity (T) |
30 T |
|
Axle |
3 axles, 13T FUWA /Huajing/BPW Brand |
|
Rim |
9.00-22.5 (special for export market) |
|
Tire |
12.R22.5 Vacuum tire 13pieces |
|
Suspension |
Air suspension ( Mechanical America Type optional) |
|
Spring leaf |
90(W)mm*13(Thick)mm*10 Layer |
|
King pin |
JOST brand 3.5inch bolts type |
|
Support leg |
China brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm,Down plate is 16mm; Material is Q345B Steel |
|
Side beam |
Q235 16# channel steel |
|
Platform |
3mm diamond platform |
|
Side wall |
Height is 800mm, you can choose freely. |
|
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
|
ABS |
Optional |
|
Twist Locks |
Twelve pieces (Lifting type) |
|
Valve |
WABCO valve |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Details
We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers and trucks will be polished with wax before shipping.
